GM2 Standard Transverse Probe
$203.00
Thin transverse probe for the GM2 magnetometer—a slim, rigid tip that reads the field across the probe face. It is ideal for gap measurements, especially where the clearance is limited.
Maximum Range/Resolution: ±19,999.9 G / 0.1 G; 20kG – 30kG /1G
Description
Thin Transverse Probe for the GM2 Magnetometer

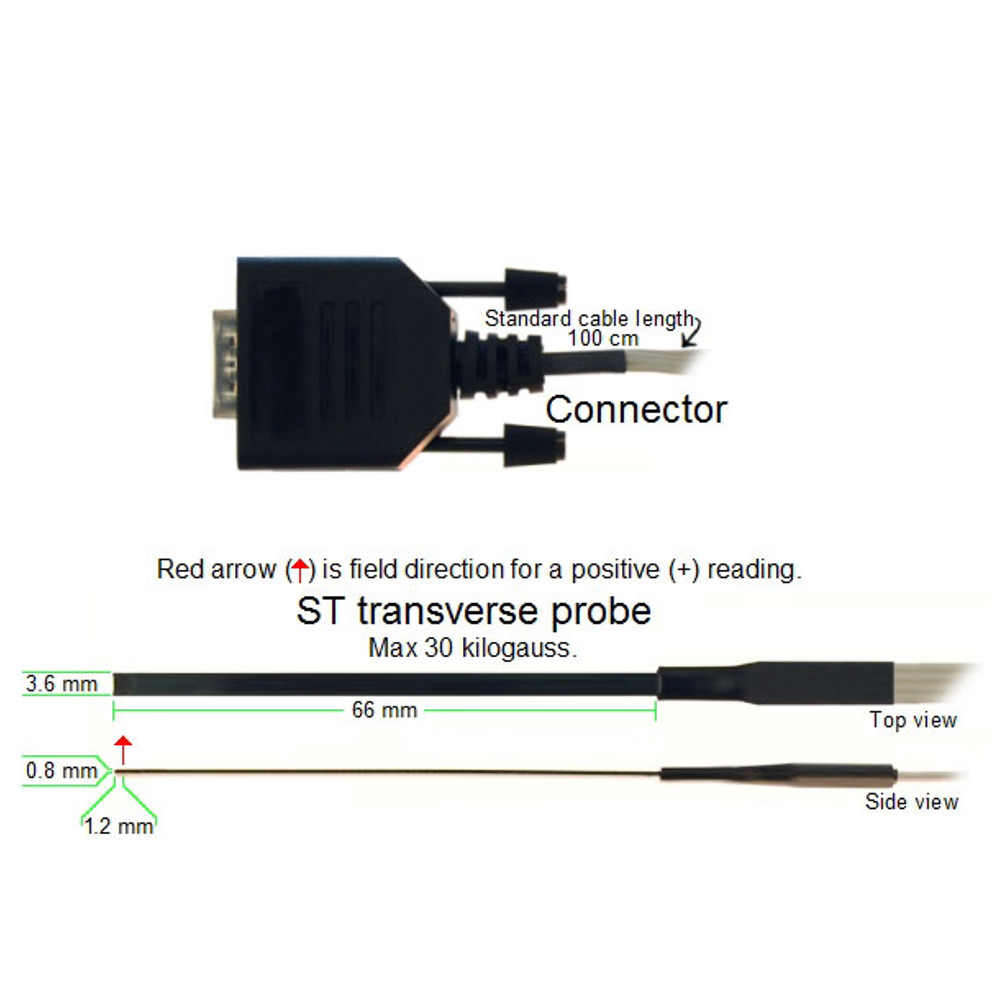

This probe measures magnetic fields perpendicular to its flat face, with the sensor set in a thin, rigid tip that slips into places a bulkier probe can’t reach. Where the Axial Probe reads along the probe shaft, the Transverse Probe reads across it—ideal for mapping the field in a gap rather than down a bore.
Choose it when you need to measure inside narrow gaps: between magnet poles, in motor and speaker air gaps, across slots, or anywhere the clearance is tight (down to 0.65mm gap) or you want a rigid tip and a repeatable sensor orientation.
Probe Type: Transverse (Single Axis)
Sensitivity range: 0.1 Gauss – ±30 kGauss (ST Type)
Additional information
| field type | DC Magnetic |
|---|---|
| accuracy | ±1% |
| applications | Manufacturing, Aerospace |
| category | Gaussmeters |
| certification | NIST traceable |
| max range | ±19999.9 G, ±29999 G |
| number of axes | single axis |
| resolution | 0.1 G, 1 G |
