Gaussmeters

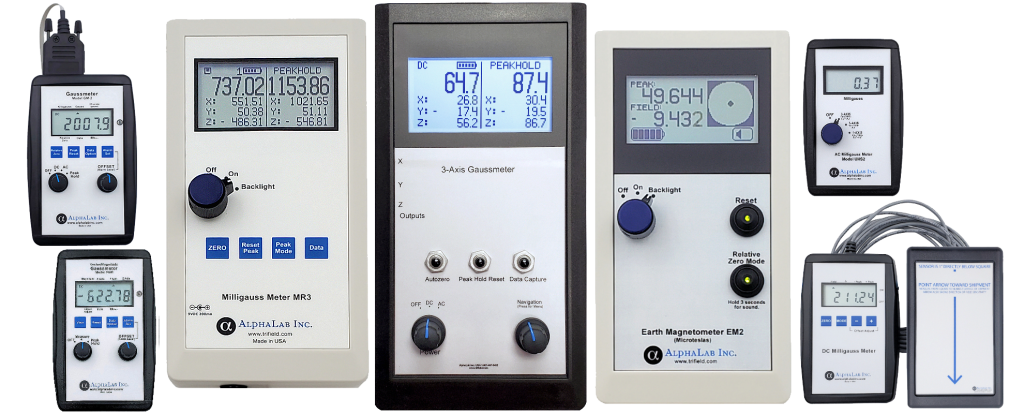

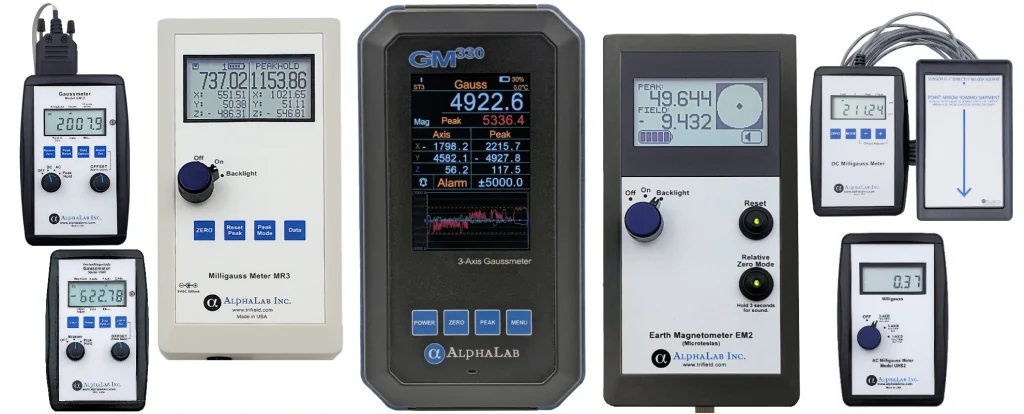

Gaussmeters are scientific instruments used to measure magnetic fields. AlphaLab carries a full line of hand-held, digital gaussmeters for scientific and industrial applications, that can measure DC and AC magnetic fields, as well as magnetic pulses. Measurements can be single-axis or 3-axis, with USB data logging and can range from 0.01 milligauss up to 30,000 gauss, depending on your application.
|
Meter |
Field type |
Axes |
Range |
Resolution |
Suggested use cases |
|
GM330 |
AC/DC |
Single/3-axis (probe dependent) |
+/-30kG |
0.1G |
Most capable AC/DC work, peak capture, strong magnets, data storage and USB streaming, accepts both single and 3axis GM300 series probes |
|
AC/DC |
Single |
+/-30kG(ST probe) +/-800G(HS probe) |
0.1G (ST) 0.01G (HS) |
Lab AC/DC work, peak capture, strong magnets (ST probes), residual magnetism(HS probes), production QC |
|
|
DC |
Single |
+/- 20kG |
0.1G |
Strong magnets, magnet QC |
|
|
DC |
Single |
+/- 800G |
0.01G |
Moderate fields, ferrous magnetization, residual magnetism |
|
|
DC |
3-axis |
+/- 800G |
0.01G |
MRI field mapping (5 G line), vector mapping, scanning parts for residual magentism |
|
|
DC |
Single |
+/- 2000mG |
0.01mG (1nT) |
Weak DC fields, magnetic shielding checks, low field research |
|
|
DC |
3-axis |
+/- 2000mG |
0.01mG (1nT) |
Low-field vector mapping, direction+ magnitude of weak static fields |
|
|
AC |
Selectable Single/3-axis |
+/-2000mG |
0.01mG (1nT) |
AC/powerline fields, EMI surveys, ELF exposure |
|
|
DC |
Single |
+/- 2000mG |
0.01mG (1nT) |
Air-shipment compliance (IATA / ICAO / FAA) |
|
|
DC |
Single |
+/- 2000mG |
0.01mG (1nT) |
Earth’s field measurement, locating buried magnetic objects and ore |
|
|
Pulse/Waveform |
Single |
+/-60kG (10kG/Volt) |
Analog |
Magnetic Pulses/Waveform Amplifier for Oscilloscope, PEMF |
AC/DC Gaussmeters
DC Gaussmeters
GM1-ST
Single axis Gaussmeter for measuring magnets, and other strong field sources
$500
