Description

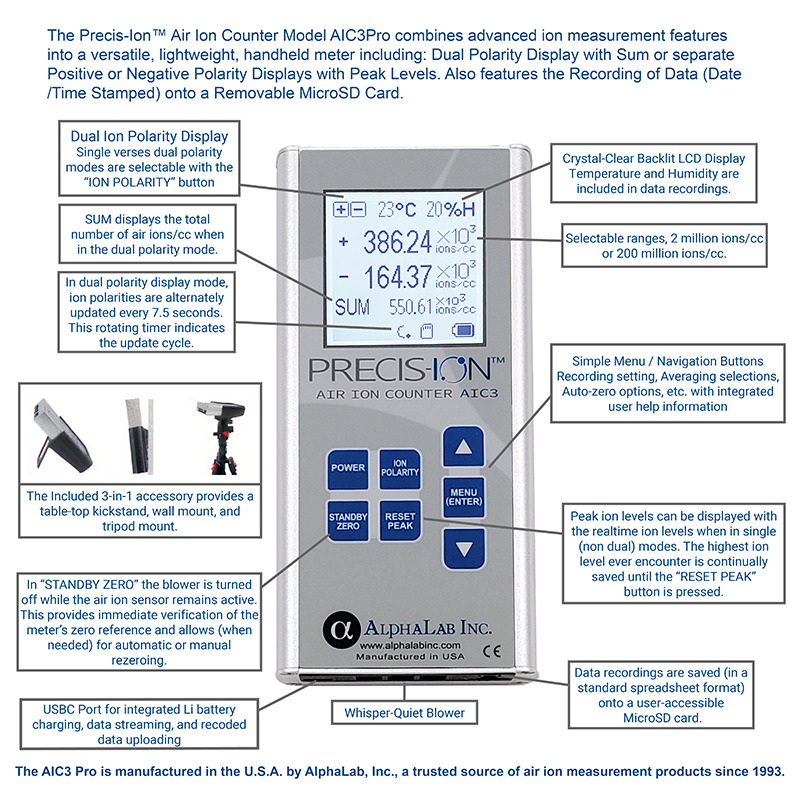

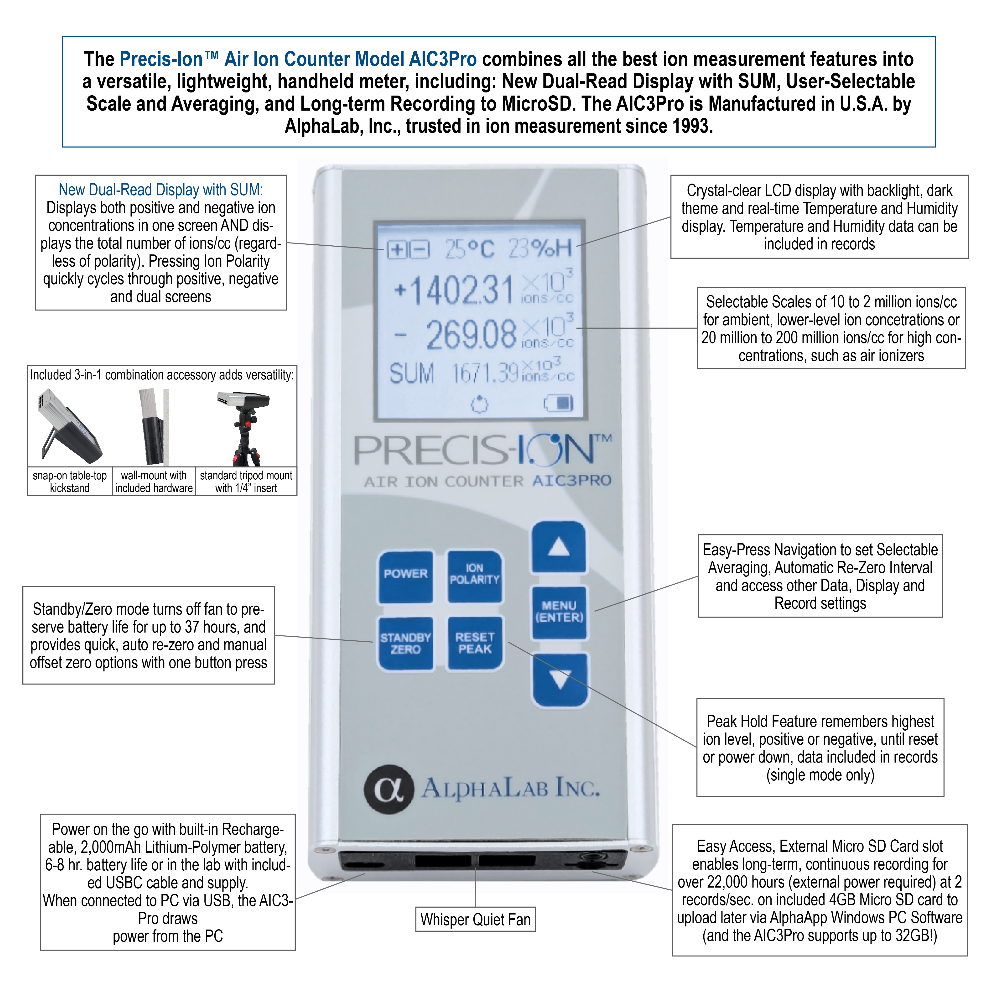

The AIC3Pro comes packed full with all these features:

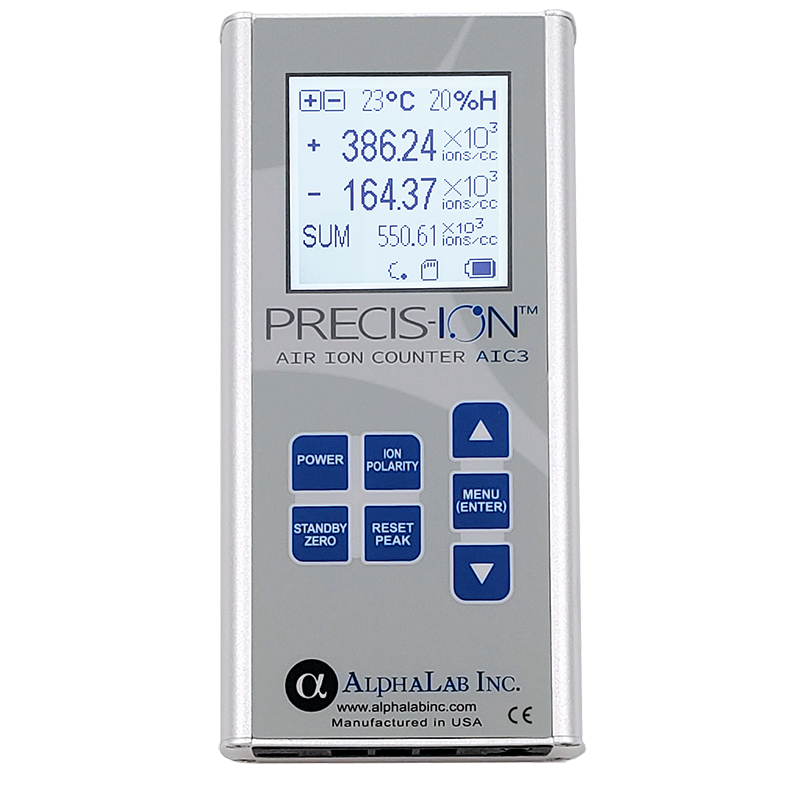

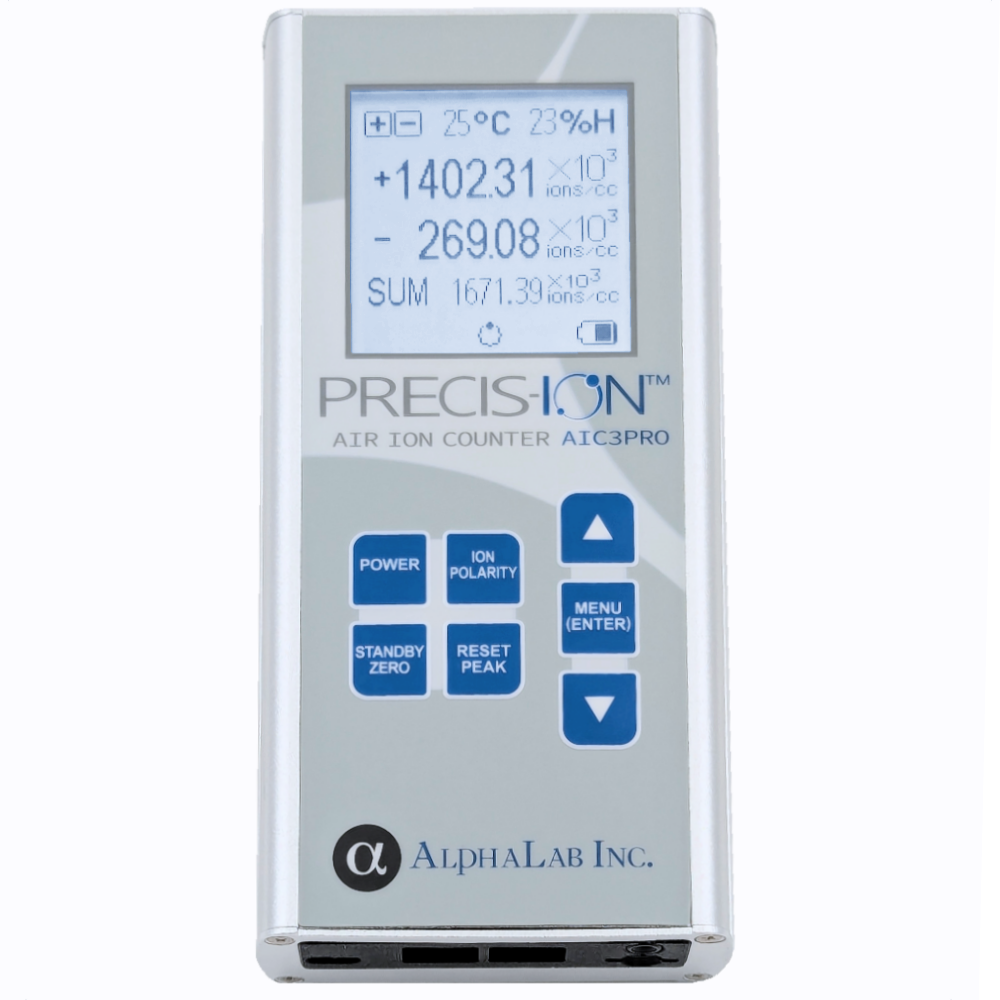

- Dual Polarity Display with Sum
- Ranges, 2 million ions/cc, or 200 million ions/cc – Selectable
- Data Recording, Date/Time Stamped – Stored on Removable MicroSD Card
- Data Streaming, Record Uploading, and Plotting – via Included PC App
- Automatic re-zero for long-term unattended operation – Selectable
- Peak Level Capture
- Averaging – Selectable
- Rechargeable Li Battery

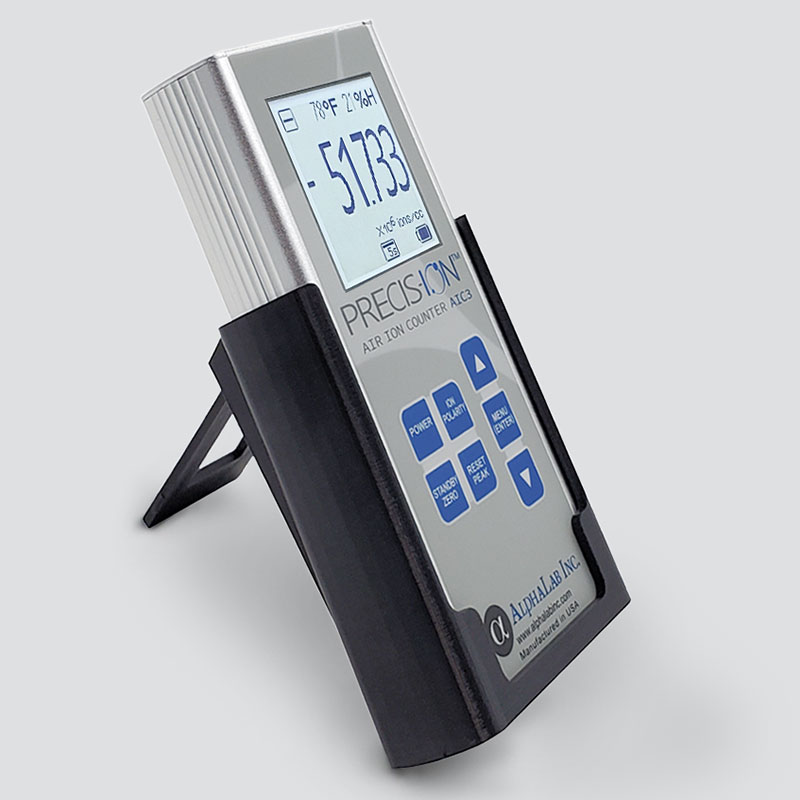

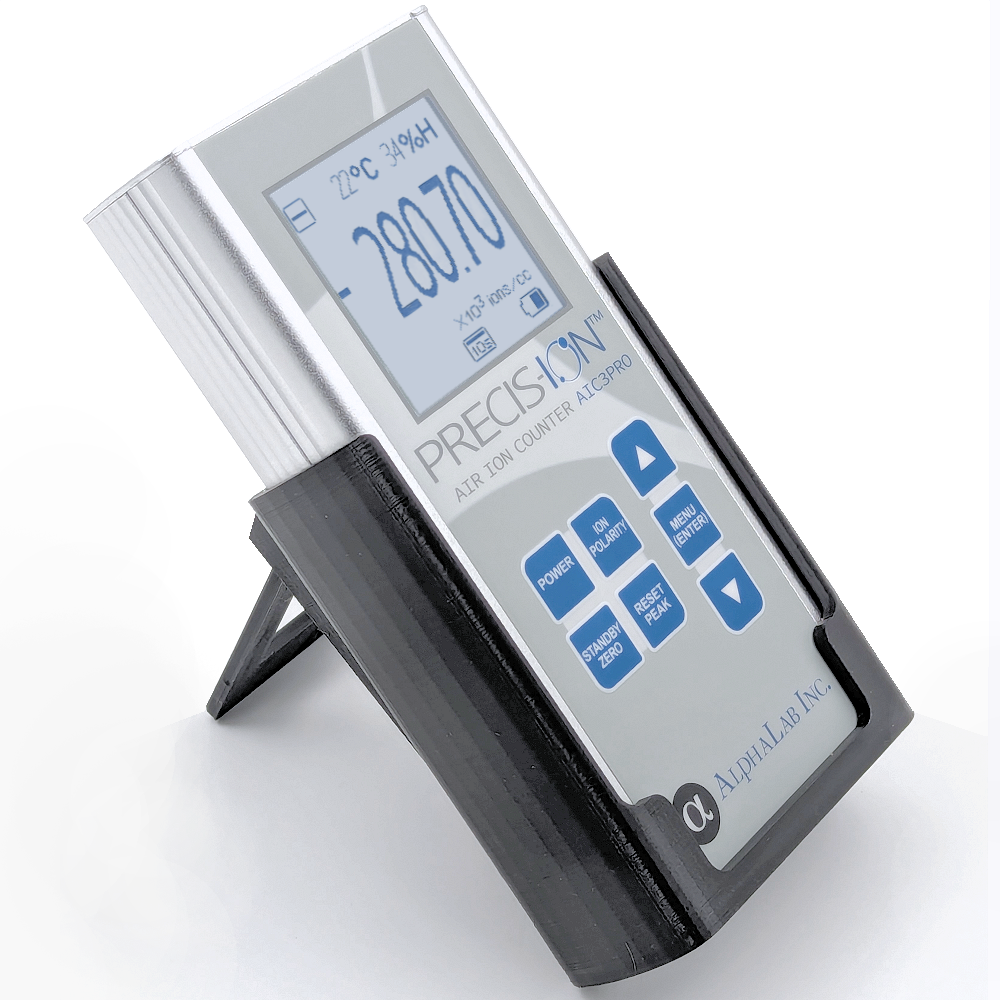

- Tripod Mount, Wall Mount, and Dest Top Kick Stand

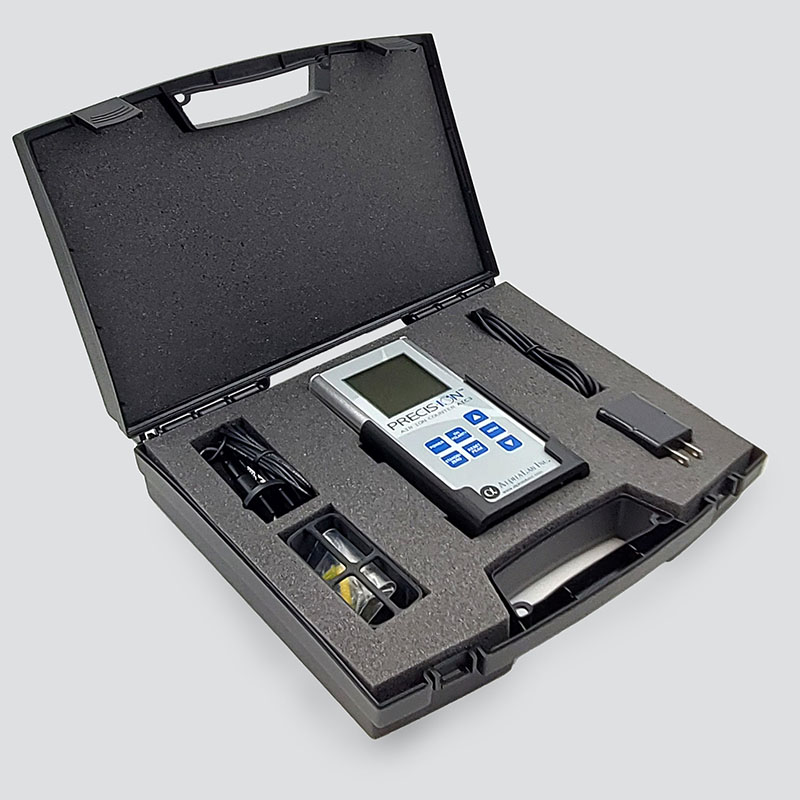

- Deluxe Carrying Case
|
SPECIFICATIONS:
|
|
|
Ion Polarity
|
Positive, Negative, or Dual polarity with Sum – Selectable. In dual polarity mode, polarities are alternately updated every 7.5 sec. |
| Ion Scale Range | 2 million or 200 million ions/cc – Selectable |
| Ion Resolution | 10 ions/cc in 2 million scale, 1000 ions/cc in 200 million scale |
| Ion Accuracy | +/- 20%*, repeatability 5% |
| Averaging | None or 1 second to 15 seconds – Selectable |
| Peak Value | Selectable (in single polarity mode only) |
| Data Recording | Date and Time stamped files in a standard CSV format (supported by most data analysis software). Includes ion level, temperature, and humidity. In dual polarity mode, both polarities and sum are recorded. Data is recorded onto a removable MicroSD, 32GB max. |

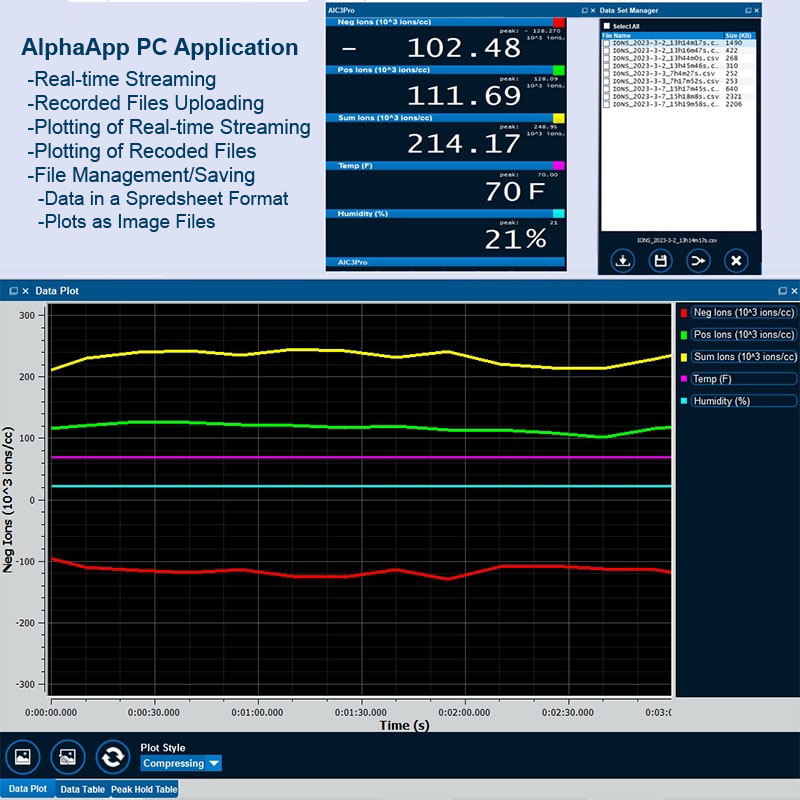

| Streaming/Plotting | AlphaApp (free of charge Windows PC application) provides real-time data streaming, recorded data uploading, and plotting via a supplied 6’ USB cable. |
| Humidity Sensor | +/- 2% Relative Humidity |
| Meter Zeroing | Zero reference calibrated and self-test – Selectable Automatic re-zeroing for long term unattended operation None or 3, 6, 12, or 24hr – Selectable |
|
Auto Shutdown
|
None or 5, 15, 30, or 60min. – Selectable |
| Display | 128×128 pxl LCD, Backlight level is Selectable |
| Battery | 2,000mAh rechargeable lithium-ion, UN38.3 certified 6-7 operating hours, Charging via USB C port with any USB power source |
| Charger (Included) | Input 110-240V, 50-60Hz, .35A, Output 5VDC, 1A |
|
Environmental Limits
|
Temp -20°C to 43°C, Humidity 0-85% non-condensing Wind, <15km/hr (9mph) |

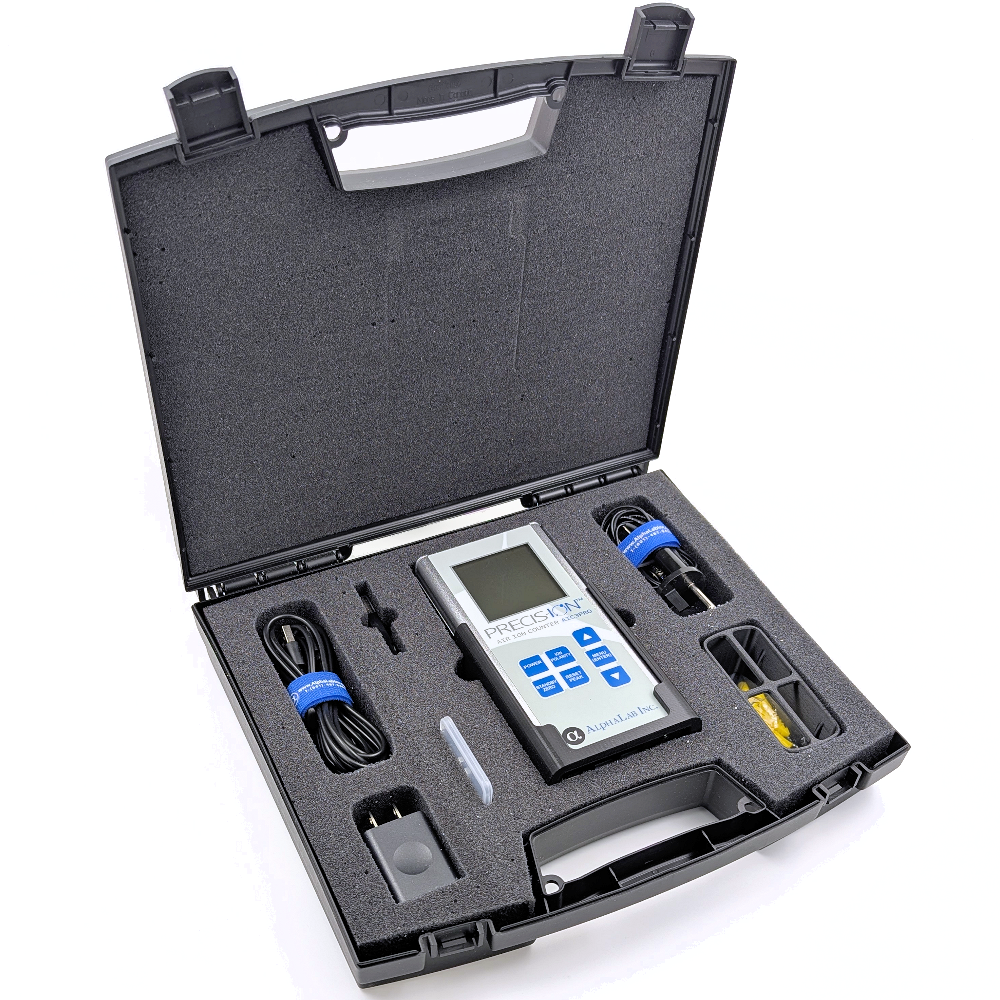

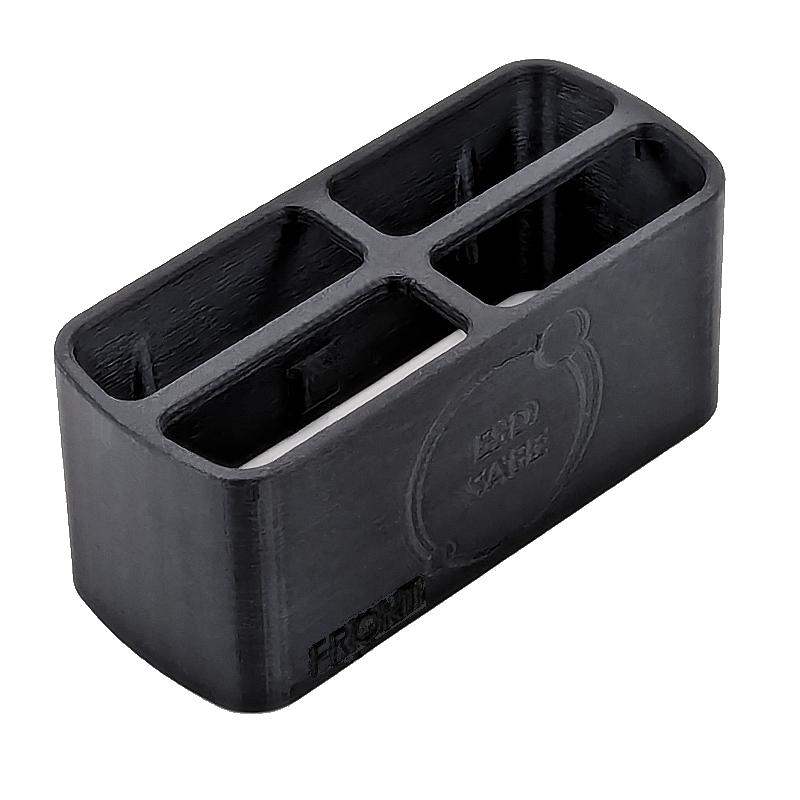

| Accessories (Included) | ESD shielding cap, Earthing ground cable with connectors. 3-in-1 kickstand, wall mount, and tripod mount. Deluxe protective carrying case. |
| Meter Size | 6.6” x 3” x 1.5” (166.7mm x 76.2mm x 38.1mm) |
| Meter Weight |
12.9 oz. (366 grams)
|
| Carry Case |
12″ x 10.6″ x 2.7″ (305mm x 269mm x 69mm), 1.1 lbs. (.5kg)
|
| FCC Compliance |
Part 15
|
| CE Compliance |
EMC: BS EN 55032:2015/Cor 1:2016, BS EN 61000-3-2:2019, BS EN 61000-3-3:2013+A1:2017, BS EN 55035:2017/A11:2020
RoHS: EN 50581:2012 |
AIC |
AIC2 |
AIC3 |
|
| Dual Scale 2M /200M | Single scale specified with order | X | X |
| Zeroing | Manual | Auto 50 seconds | Auto 10 Seconds or Manual |
| Averaging | 3 Seconds | 2, 5 or 14 seconds | None or 1 to 15 seconds |
| Peak Hold | X | X | |
| Temperature Units | C | C or F | |
| Analog Output | X | ||
| Battery Type -Removable -Rechargeable |
9VDC X – |
AA, 4 each X – |
Li, UN38.3 Certified – X |
| Ion Polarity: -Negative -Positive -Dual Polarity Display -Sum of Both Polarities |
X X – – |
X X – – |
X X X X |
| Data recording: -Ion Level -Temperature -Humidity -Date -Time -Standard Spreadsheet -Removable SD Card -Dual Polarity -Sum of Both Polarities |
– X |
– X X – – – Only via AlphaApp – – – |
– X X X X X X X X X |
| Recording Storage | Internal | Removable SD Card 8GB Supplied, 32GB Max |
|
| AlphaApp -File upload -Streaming -Plotting |
X X Single Polarity Level |
X X All or Select Portions of Available Data |
|
| Auto Shut Down after Specified Period | Selectable | ||
| Automatic Rezero After Specified Period For Long Term Unattended Operation | Selectable | ||
| Agency Compliance -FCC -CE |
X X |
||
| Size | 6.6”x 3.7” x 3” | 7.7”x 4”x 1.75” | 6.6” x 3” x 1.5” |
| Kick Stand | X | X | |
| Wall Mount | X | ||
| Tripod Mount | X | ||
| Deluxe Carrying Case | X | X | |
| External Power | 9VDC | 9VDC | USB |
1. The unpredictable nature of ion self-destruction in the air just outside the meter makes more accurate measurement impossible (some ions are lost as air is redirected, positive and negative ions neutralize each other spontaneously, etc.)
